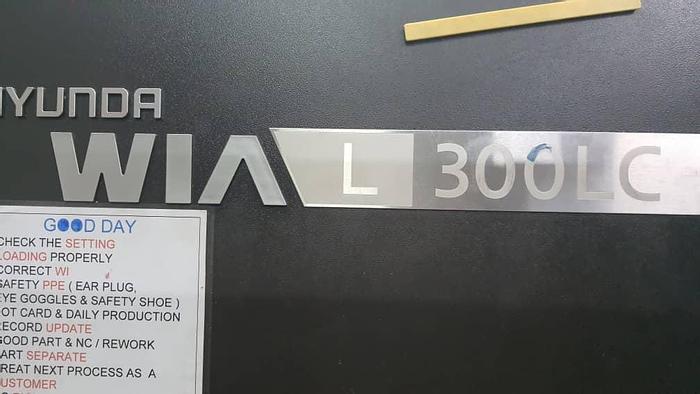

2013 HYUNDAI WIA L300LC CNC TURNING LATHE MACHINE

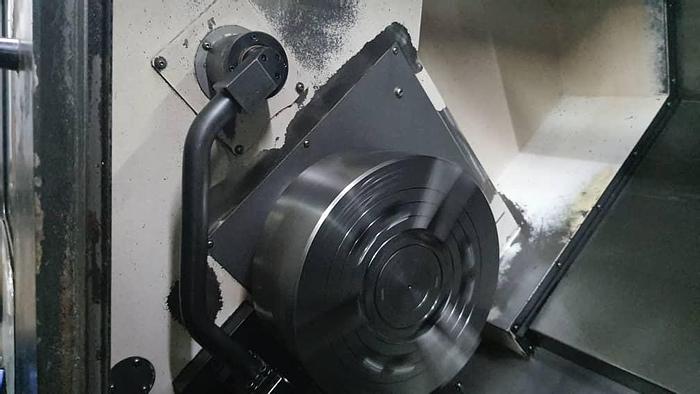

Std. Chuck Diameter(15") 381 MM

Swing Over Bed 750 MM

Swing Over Carriage / Cross Slide 480 MM

Max. Turning Diameter 560 MM

Max. Turning Length 1,320 MM

Spindle Nose A2-11

Spindle Speeds 2,800 RPM

Spindle Bore / Bar Capacity 115 / 104 MM

Spindle Power 26.0 / 22.0 KW

Rapid Traverse Rates - X / Y20 / 24 M/MIN

Number of Turret Stations 12

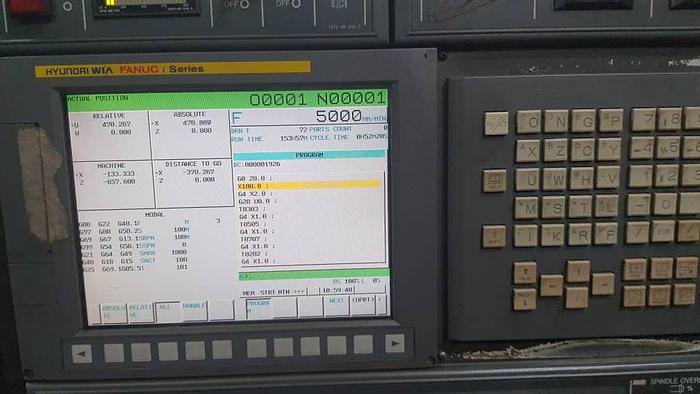

Fanuc Controller
