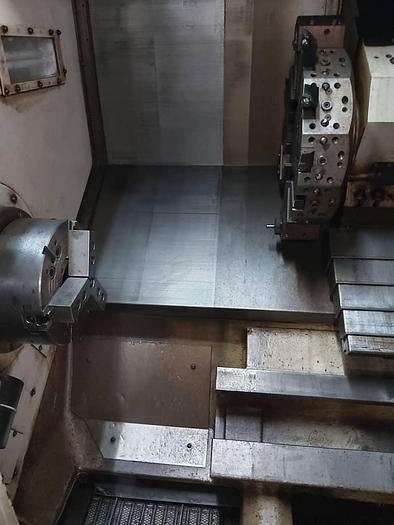

2007 HURCO TM10 CNC TURNING LATHE MACHINE

Distance Between Centers 28.9 in (735 mm) Swing Over Bed Diameter 22.9 in (582 mm) Swing Over Cross Slide Diameter 15.8 in (402 mm) Max. Turning Diameter 17.7 in (450 mm) Max. Turning Length 29.9 in (760 mm) Max. Bar Capacity 3.19 in (81 mm) X, Z Axis Travel 9.8 x 31.1 in (250 x 790 mm) Max. Spindle Speed 3000 rpm Max torque high gear 258 ft/lb @ 600 RPM (350 Nm @ 600 RPM) Spindle Power 29.5 hp (22 kW) Spindle Nose A2-8 Chuck Diameter 10 in (254 mm) Tool Capacity 12 Stations Turret Index Time-Adjacent 0.5 seconds Turret Index Time-Furthest 1.5 seconds Rapid Traverse X,Z Axis 1181, 1181 in/min (30, 30 m/min) Required floor space 191.2 x 112.4 in (4857 x 2854 mm) Machine Height 85.3 in (2,167 mm) Machine Weight 11054 lbs (5014 kg)
