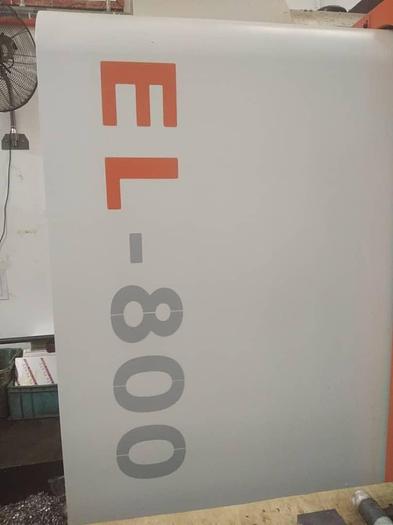

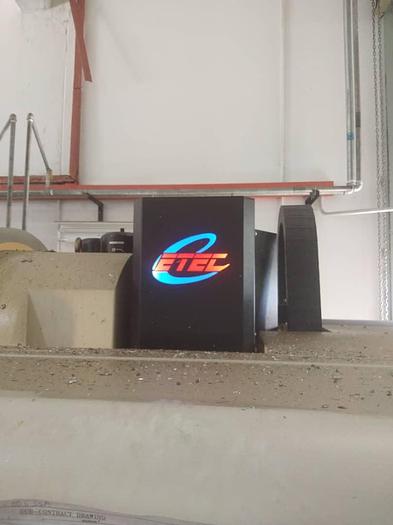

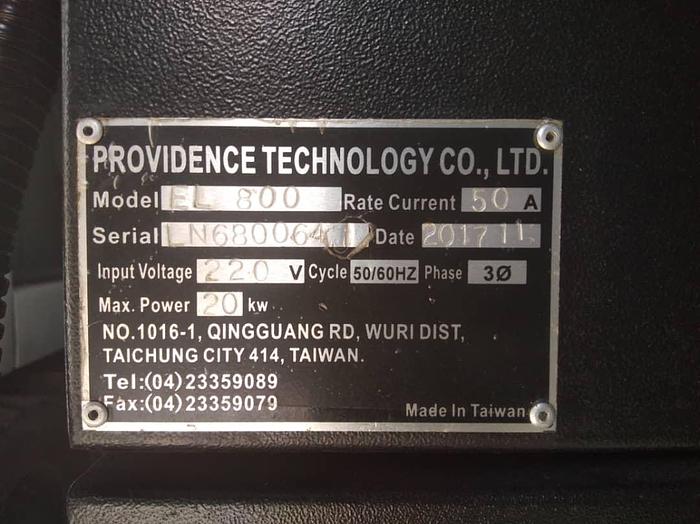

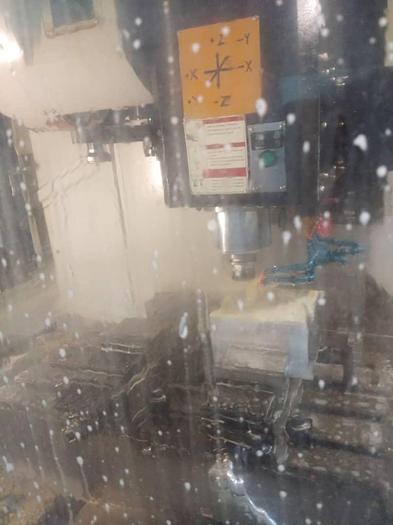

2017 ETEC EL 800 CNC MILLING MACHINE

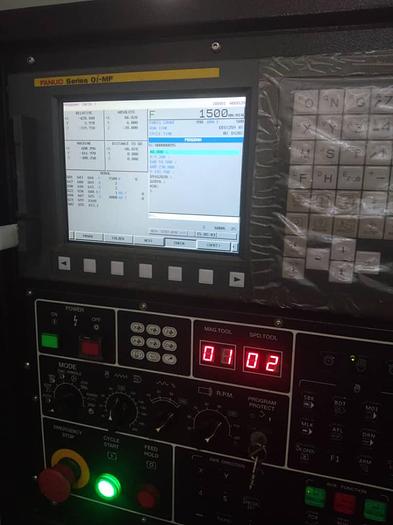

Three axes linear ways X-axis mm 800 Y-axis mm 500 Z-axis mm 510 Fanuc Oi-MF Spindle speed rpm 10000 Transmission of spindle type DDS Spindle motor hp 10 / 15 Spindle nose taper type BT40 Rapid feed rate of X / Y / Z m / min 40 / 40 / 36 Table Size mm 900*450 T-slot(width*no*distance) mm 18*4*100 Max.table load kgs 500 ATC type type Arm Tool capacity pcs 24 Max. tool weight kgs 7 Tool to to sec 2 Air source kgs / cm2 6 Floor space(L*W*H) mm 2500*1930*2560 Machine weight kgs 5000
