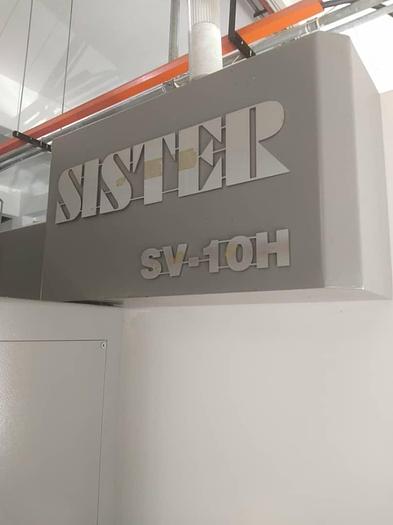

2016 SISTER SV-10H CNC MILLING MACHINE

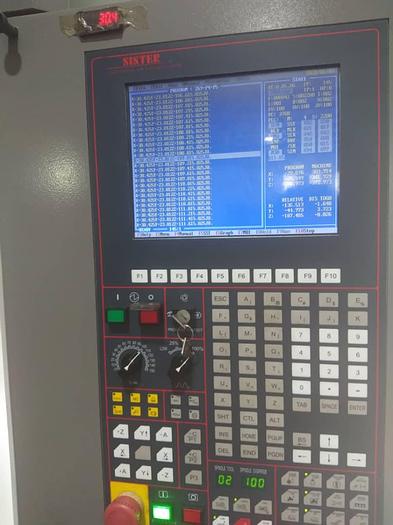

CONTROLLER SISTER X-axismotors KW 3.5 Y-axis motors KW 3.5 Z-axis motors KW 3.5 SPINDLE Spindle motor (conti./ 30 min. ) KW / HP 11 / 15(15/ 20) Higt / Low Winding Switching Spindle Taper 　 BT-40 Spindle Type 　 Direct drive Spindle speed 10 000 RPM TABLE Table Size mm 1100X 500 T-Slots ( Width*No.*Pitch ) mm 18 x 4 x 120 Max. work piece weight kgs 500 TRAVEL X / Y / Z -Axis Travel mm 1000 / 500 / 550 Spindle Nose To Word Table Distance, Min.-Max. mm 120 ~ 670 Spindle Center to Column Surface Distance mm 595 Linear Guideway Type ( X,/ Y / Z ) mm 34/45/45 (Roller type) Cooling / Lubrication Oil Rapid traverse X / Y / Z m / min 24 / 24 / 24 Cutting Feed Rate mm / min 1-10000 Min.Resolution mm 0.001 TOOL Max. Tool Length mm 300 Max. Tool Diameter mm Ø 77 ( 127 opt. ) Max. Tool Weight kg 7 Tool Magazine Arm type Capacity 30 Machine Net Weight kg 6100 Floor Space of Machine (L*W) mm 3480 x 2350 Power KVA 30
