CHEVALIER EM2033L CNC MILLING MACHINE CENTER

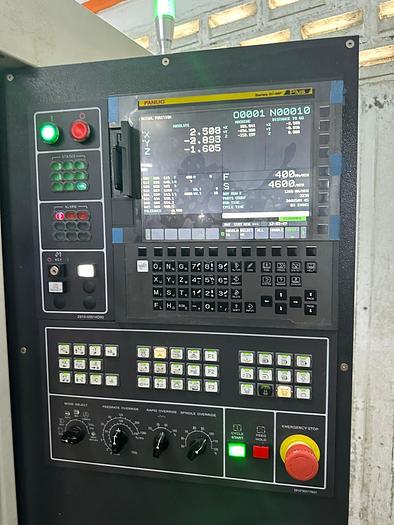

Controller : Fanuc 0i-MF Plus

Table size1,000 x 510 mm (39.4" x 20.1")

Max. table load500 kg (1,100 lbs.)

Travel X-travel 850 mm (33.5")

Y-travel 530 mm (20.9")

Z-travel 510 mm (20.1")

Spindle nose to table surface150~660 mm (5.9"~26.0")

Spindle center to column585 mm (23.0")

Spindle speed : 10,000 rpm

Spindle Type : Direct drive

Spindle diameter Ø70 mm (Ø2.8")

Feed rates Rapid traverse (X/Y/Z)36/36/24 m/min (1,417/1,417/944 ipm)

Cutting feed (X/Y/Z)1~10 m/min (39.3~393 ipm)

Automatic tool changer Tool storage capacity24+1 arm type

Tool shank BT40

Tool change time (T-T) 3 sec.

Pull stud P40T-1

Max. tool diameter with adjacent tool Ø80 mm (Ø3.1")

Max. tool length 300 mm (11.8")

Max. tool weight 7 kg (15.4 lbs.)

Machine dimension Floor space (W x D x H)2,360 x 3,020 x 2,600 mm (92.9" x 118.9" x 102.4")

Net weight 5,800 kg (12,700 lbs.)
