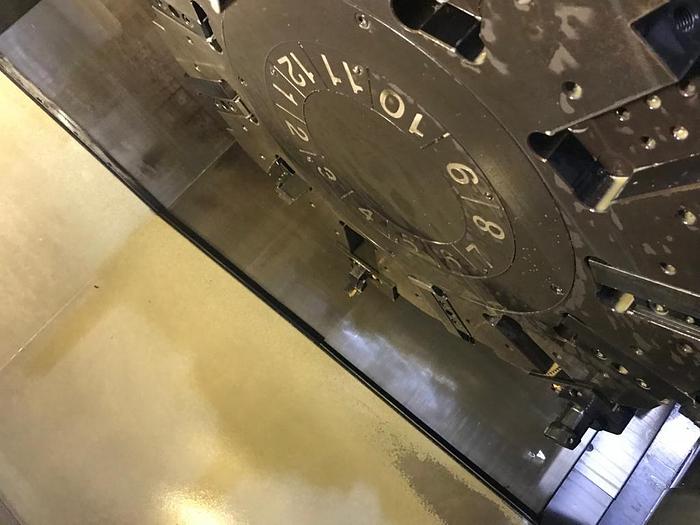

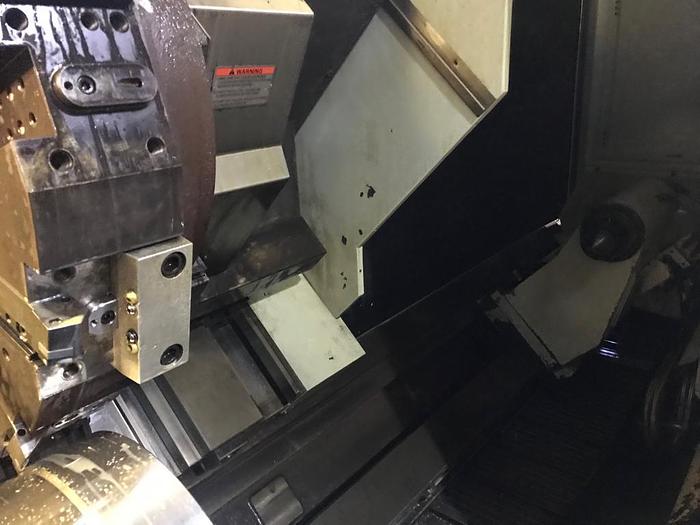

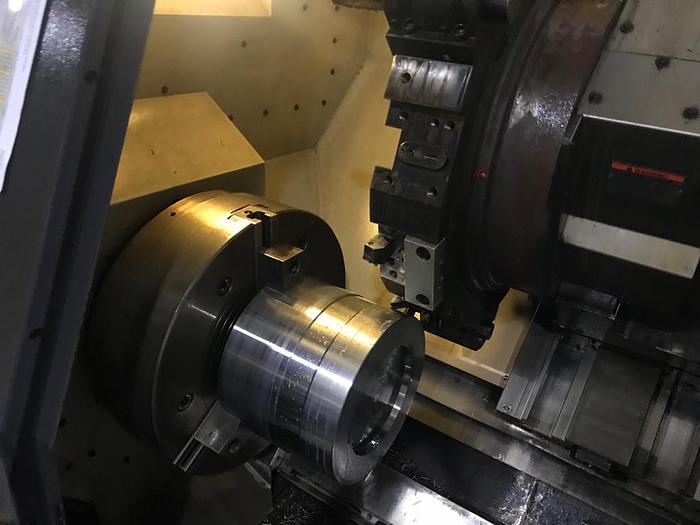

2014 YAMASEIKI GS 6600L CNC TURNING MACHINE

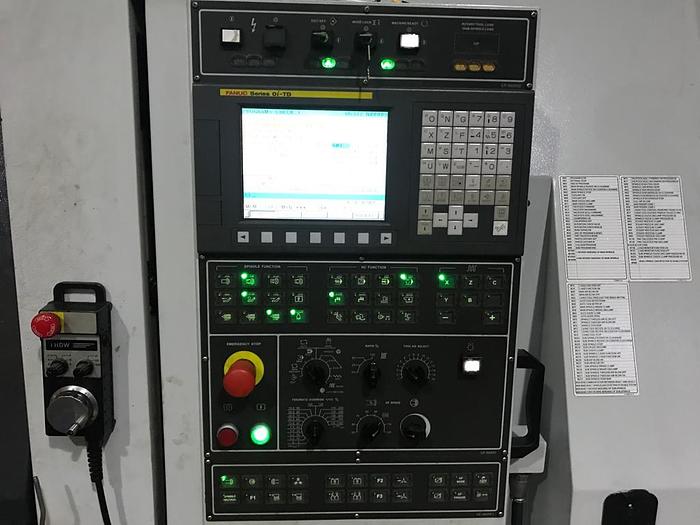

GS-6600 / L Quill center taper MT #4 ( Dead center ) / MT #5 ( Opt. Live center ) Quill diameter / travel Ø 4.33" ( 110 mm ) / 5.90" ( 150 mm ) Tailstock base travel 31.49" / 68.89" / 125.98" ( 800 / 1,750 / 3,200 mm ) Programmable quill / base Yes / Yes Programmable base type Position by Z-axis CNC control Oi-TD Voltage / Power requirement AC 200 / 220 + 10 % to - 15 % 3 phase / 64 KVA Air Pressure 80 PSI ( 6kgf / cm² ) Hydraulic / Coolant tank capacity 4 gal ( 15 L ) Coolant tank capacity 63 / 84 / 210 gal ( 240 / 320 / 800 L ) Machine weight 26,450 / 30,865 lb ( 1,2000 / 14,000 kg ) Dimensions L × W × H 145.51" x 95.27" x 101.10" ( 3,696 x 2,420 x 2,568 mm ) / 199.21" x 95.27" x 101.10" ( 5,060 x 2,420 x 2,568 mm ) / 266.37" x 114.56" x 98.54" ( 6,766 x 2,910 x 2,503 mm )
